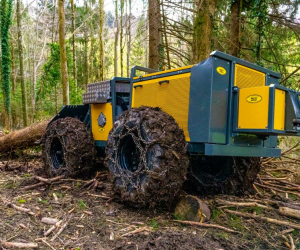

Knickschlepper KS 65

Technical specifications

Engine
- Yanmar diesel engine
- Power 70 hp

Traction drive
- Hydrostatically stepless 0 - 8 km / h
- All-wheel drive with switched differential locks (100%)

Hydraulic system
- 1 Sauer-Danfoss variable displacement pump for travel drive
- 1 Sauer-Danfoss variable displacement pump for winch drive

Control
- All functions radio controlled

Winch
- 6t pulling force, steplessly hydraulically driven forwards and backwards

Rear shield hub
- Hydraulically adjustable

Weight
- 2600 kg

Dimensions
- length 3500 mm
- width 1700 mm
- height 1570 mm

Options
- traction winch
- snow chains
- spiked chains
- mulcher
- wood chipper
