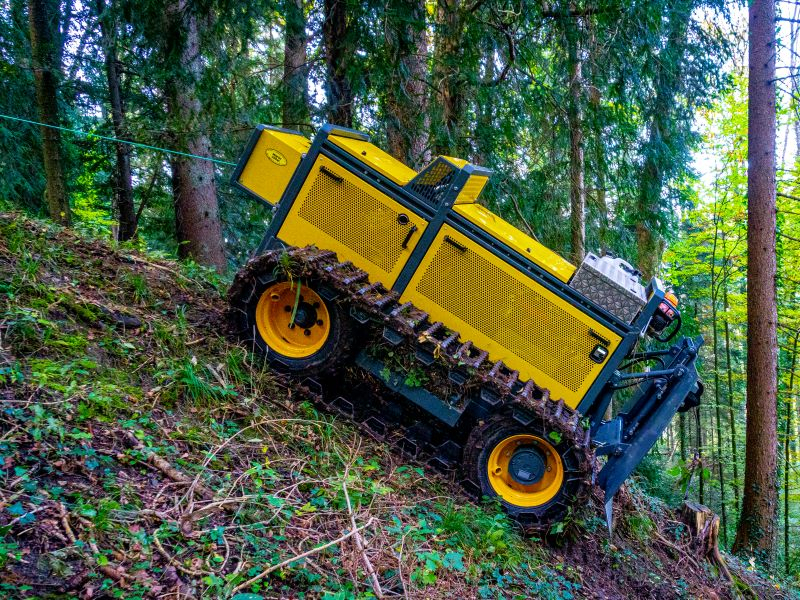

Raup -Trac RT50

RT 50

Technical specifications

Engine
- Yanmar diesel engine
- Diesel particle filter (Stage V)
- Power 48,3 HP
- El. Engine monitoring

Traction drive
- hydrostatic stepless with integrated parking brake
- two driven wheels
- Chain 300mm (hydraulic tighten)

Hydraulic system

- 2 variable displacement pumps for the travel drives
- 1 variable displacement pump for winch drive independent of the travel drive

Control
- All functions radio controlled

Winch
- Adler optionally 5.5t or 6.0t
- Drive hydrostatically forwards and backwards with variable motor stepless

Rear shield hub
- Hydraulic double-acting stroke
- Feed roller adjustable in height 250 mm

Weight
- 2550 kg

Dimensions
- length 2950 mm
- width 1570 mm
- height 1650 mm

 Options
- traction winch
- snow chains
- pointed chains
- bands for wet or steep terrain
- mulcher
- wood chipper
